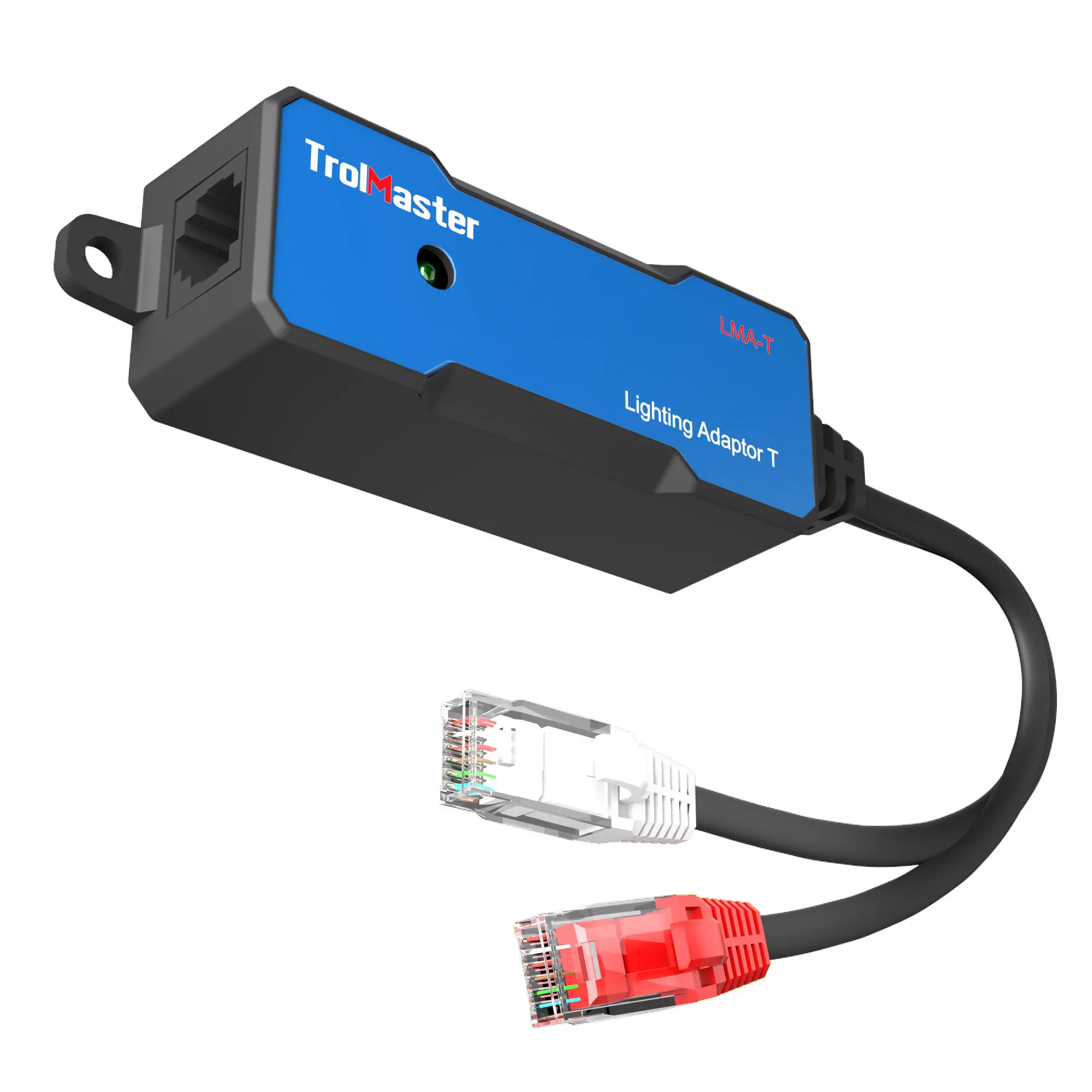

Trolmaster Lighting Control Adapter for ThinkGrow LED

The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full spectrum and second red output levels on the ThinkGrow LEDs

Description

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full spectrum and second red output levels on the ThinkGrow LEDs.

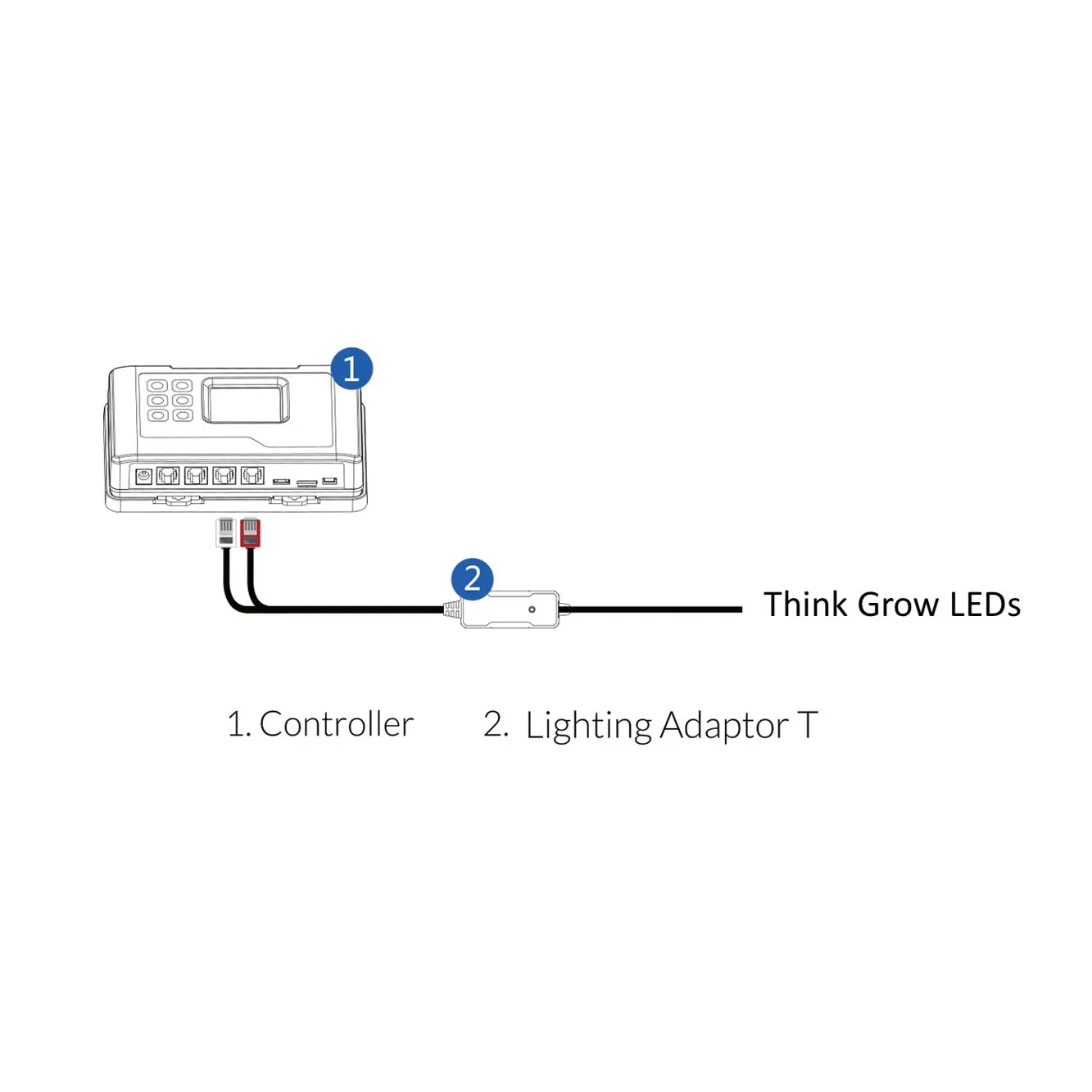

The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the second red LEDs.

The LMA-T then is connected to the RJ type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.

One adaptor could run up to 256 ThinkGrow LEDs.



* Convert RJ12 to Water Proof Connector Cable included.

Additional information

Brand

Brand

TrolMaster

Warranty

These are the steps you need to take for warranty issues

  1.  All customers (end users) must submit a request and contact Trolmaster support at www.trolmaster.com/News/Warranty?class=Support to troubleshoot and validate.
  2. Please use the TrolMaster case number to initiate a warranty request through the GreenPlanet warrantyClick here
  3. All claims must have proof of purchase from an authorized GreenPlanet wholesale partner.  We will not claim RMAs for non GreenPlanet wholesale customers.
  4. All claims from wholesale partners must go through the Green Planet Wholesale warranty process with the associated Trolmaster case number.
  5. Replacement devices provided as part of an advanced exchange that are not returned to GreenPlanet within 30 days of the RMA claim will be subject to a product non-return fee of full retail value.

If you have any issues or concerns, please contact warranty@mygreenplanet.com

* ThinkGrow & Trolmaster are owned by the same umbrella company. Thus the claims and process will be the same.
