Description

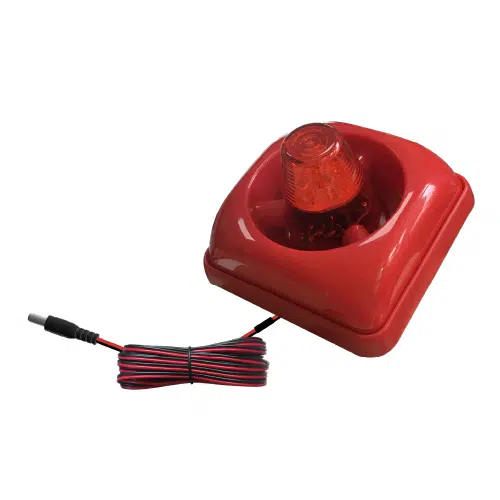

The TrolMaster Alarm Station AS-5 is an audio/visual alarm module that is specially designed for HCS-2, HCS-3, and NFS-2 controllers to provide a local alarm. When an alarm condition is detected by the controllers, the AS-5 will be activated to alert the users of the new alarm condition. It can be mounted inside or outside the room for monitoring.
The AS-5 can be powered by the DSD-1 Dry Contact Station and connected to the CDA-1. When connected with the CDA-1, the AS-5 can be linked to either AL-1 or AL-2 CO2 sensors channel, or linked to both sensors channels for complete redundancy. The AS-5 can also directly connect to the Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3)
Warranty
These are the steps you need to take for warranty issues
- All customers (end users) must submit a request and contact Trolmaster support at www.trolmaster.com/News/Warranty?class=Support to troubleshoot and validate.
- Please use the TrolMaster case number to initiate a warranty request through the GreenPlanet warranty. Click here
- All claims must have proof of purchase from an authorized GreenPlanet wholesale partner. We will not claim RMAs for non GreenPlanet wholesale customers.
- All claims from wholesale partners must go through the Green Planet Wholesale warranty process with the associated Trolmaster case number.
- Replacement devices provided as part of an advanced exchange that are not returned to GreenPlanet within 30 days of the RMA claim will be subject to a product non-return fee of full retail value.
If you have any issues or concerns, please contact warranty@mygreenplanet.com
* ThinkGrow & Trolmaster are owned by the same umbrella company. Thus the claims and process will be the same.
Specification
Connector: DC 5.5*2.1 Male
Rated Voltage: DC12V/24V
Rated Current: 60mA
Strobe: Red/ 120 FPM
Siren: 85dB
Working Environments: Temperature 32-122°F, Humidity<=90%
Package Dimensions: 82mm(L) x 82mm(W) x 51mm(H)
