TrolMaster Tent-X Main Controller with 3-in-1 Sensor (Temp / Humid / Light ) and Cable set

TrolMaster’s Tent-X (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system, designed for single-zone grow tents. Thanks to the controller’s compact hydroponic capabilities, it allows the user to effectively control their tent’s environmental parameters and irrigation schedule with a single control system.

Description

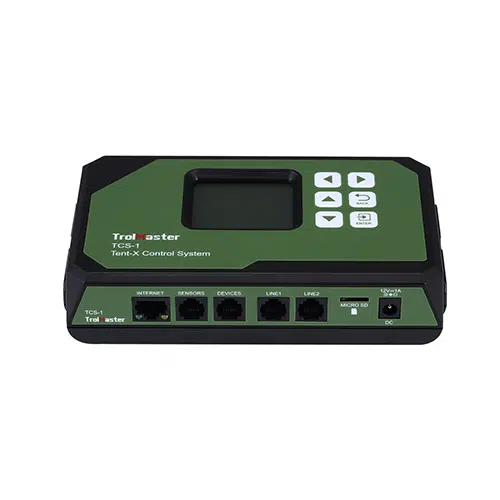

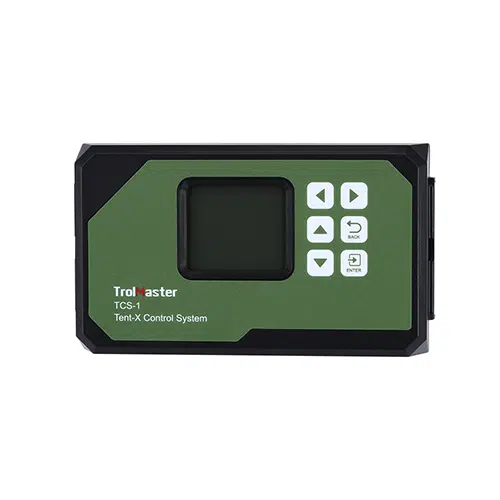

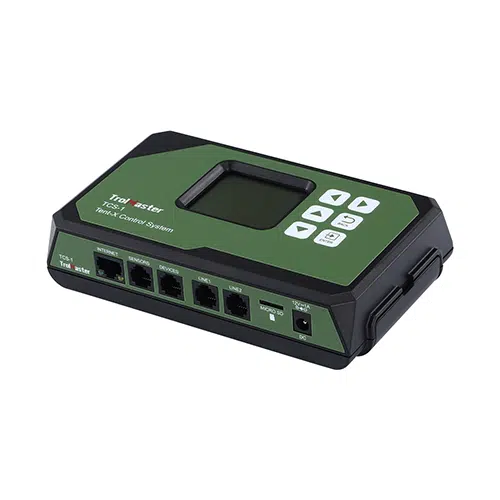

TrolMaster Tent-X Main Controller with 3-in-1 Sensor (Temp / Humid / Light ) and Cable set

TrolMaster’s Tent-X (TCS-1) is a state-of-the-art professional-grade and modularly designed environmental and irrigation control system, designed for single-zone grow tents. Thanks to the controller’s compact hydroponic capabilities, it allows the user to effectively control their tent’s environmental parameters and irrigation schedule with a single control system.

It comes with a 3-in-1 temperature, humidity, and light sensor, the MBS-TH. Users can daisy-chain the MBS-TH sensor with the CO2 sensor (MBS-S8), the full spectrum quantum sensor (MBS-PAR), and the smoke and water detectors into the TCS-1’s SENSOR port.

Users can also connect an AMP-3 sensor board to the Tent-X, and connect the Water content sensors (WCS-1/2) or the WD-1 water detector to the sensor board. Additionally, the TCS-1 supports the connection of up to four DS-type plug-in control models, allowing you to connect devices that can control the environment and irrigation.

The TCS-1 is the brain that unites all your climate control and irrigation devices into one being, allowing your devices to work together to create the optimal growth environment for your plants.

Features:

  • Grow Tent Grow Lights
  • Climate
  • Irrigation Compact Hydroponic Control System
  • Modular Design & Fully Customizable
  • Smartphone Control
  • Complete Controlled Device Capacity
  • Data Logging

Additional information

Weight 2.4 lbs
Dimensions 10.83 × 6.46 × 2.56 in
Brand

Brand

TrolMaster

Contents

Package Contents:

    • 1 x Tent-X Controller
    • 1 x Temp / Humid / Light 3-in-1 Sensor
    • 1 x RJ12 Cable Set for Light Connection
    • 1 x RJ12 T-splitter

Specifications

Specifications:

Input Voltage :

Certifications :

Max Number of Lighting Fixtures :

Max Distance of Device Connected :

3-in-1 (Temp/Humid/Light) Sensor :

CO2 Sensor :

Full Spectrum Quantum Sensor :

Smoke Detector :

AMP-3 Sensor Board (pH/EC/Temp) :

Water Content Sensor :

Water Detector :

Temp Device Stations :

Humid Device Stations :

CO2 Device Stations :

Program Device Stations :

EC Fan Control Adapter :

100-240VAC, 50/60Hz

ETL/FCC

256*2

1000 meters

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 1pc per set

Max 2pc per set

Max 2pcs per set

Max 2pcs per set

Max 2pcs per set

Max 4pcs per set

Max 2pcs per set

Warranty

These are the steps you need to take for warranty issues

  1. All customers (end users) must submit a request and contact Trolmaster support at www.trolmaster.com/News/Warranty?class=Support to troubleshoot and validate.
  2. Please use the TrolMaster case number to initiate a warranty request through the GreenPlanet warranty. Click here
  3. All claims must have proof of purchase from an authorized GreenPlanet wholesale partner.  We will not claim RMAs for non GreenPlanet wholesale customers.
  4. All claims from wholesale partners must go through the Green Planet Wholesale warranty process with the associated Trolmaster case number.
  5. Replacement devices provided as part of an advanced exchange that are not returned to GreenPlanet within 30 days of the RMA claim will be subject to a product non-return fee of full retail value.

If you have any issues or concerns, please contact warranty@mygreenplanet.com

* ThinkGrow & Trolmaster are owned by the same umbrella company. Thus the claims and process will be the same.

Documents

Cut Sheet

User Manual
