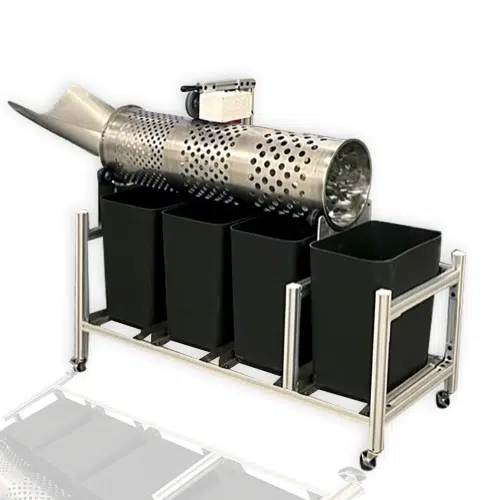

Groen Automation DS500XL Drum Sorter

The DS500XL comes equipped with the high-volume drum and deposits product direct to curing bag lined 28-gallon stackable totes.

Description

DS500XL Drum Sorter is automation ready! The DS500XL comes equipped with the high-volume drum and deposits product direct to curing bag lined 28-gallon stackable totes.

The drum sorter will sort cannabis buds in a continuous operation. Cannabis buds are loaded into the sorter and segregated into containers. If you are using an auto trimmer, the drum sorter can be located to accept buds as they come out of the trimmer. Buds can also be manually loaded in bulk.

As the buds enter the drum, they are gently tumbled for separation. The drum is set up on a slight decline from feed to discharge. As the drum rotates the product moves along its length. There are different size perforations in the drum to allow the buds to fall thru to the containers by size. The largest buds travel the entire length of the drum and fall out the end.

The drum rides on ball bearing idler wheels at each end and includes flanges to maintain position. The drive assembly manually pivots up so the drum can be removed for cleaning. Installation and start-up assistance can be provided in your facility at our standard time and material rates (provided upon request).

STANDARD FEATURES

REALIZE IMMEDIATE BENEFITS

Additional information

Weight 485 lbs
Dimensions 84 × 36 × 55 in
Brand

Brand

Groen

Groen

Warranty

All purchased products are subject to the manufacturer’s warranty policy. These policies can be found on the original manufacturer’s website or by directly contacting them.

GreenPlanet Wholesale is not responsible for replacing, repairing or any cost associated with your item while under manufacturer warranty unless specified by the manufacturer.

GreenPlanet Wholesale can assist with the coordination of the warranty if specified by the manufacturer. Please refer to our warranty section for further information.

Click here for our Warranty Section

Click here for our RMA Section

Specs

FACILITY REQUIREMENTS:

120 Volt / single-phase / 15-amp electric service / 150-watt operating power

EQUIPMENT OPTIONS:

Because drum sorters can be applied to many different processes, the following equipment options are available:

  • Custom Drum – if your flower requires a different hole pattern than the standard ½”, ¾”, and 1”, you tell us what you need. We’ll custom-design your drum to fit your specific needs.
  • High-Volume Drum – specially designed internal features increase your product thruput.
  • Trim/Inspection Conveyor – place this conveyor between your trimmer and the drum sorter to inspect the product prior to sorting or place the product on the conveyor direct from hand trimming.
