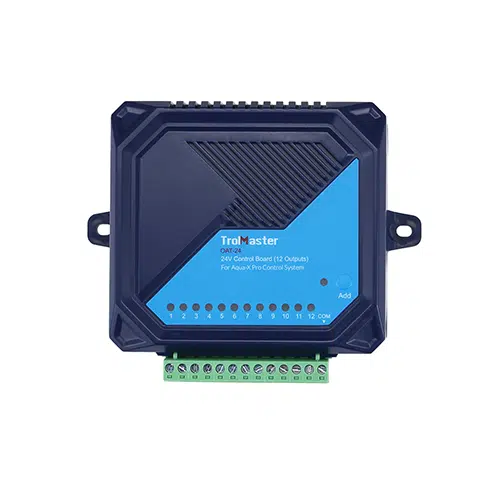

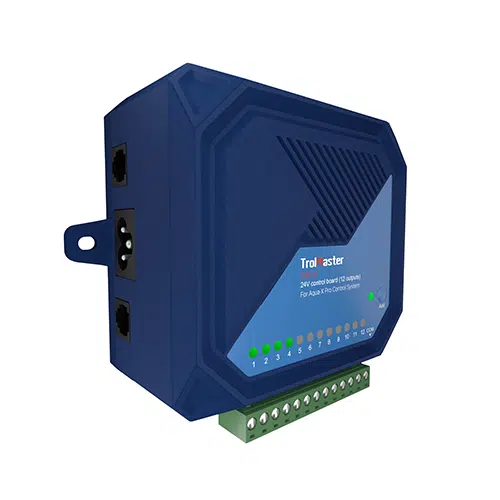

TrolMaster 12 Outputs 24V Control Board (OAT-24)

The OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids.

Description

The OAT-24 module is specifically designed for the Aqua-X Pro Irrigation Control System. It features 12 individual 24V outputs that can control up to 12 individual 24-volt irrigation solenoids. By using multiple OAT-24 modules, the Aqua-X Pro Irrigation Control System can manage up to 600 individually controlled 24 valves. Each of the solenoid valves can be independently configured by the users with one of the five control modes. Feed by: Recycle, Schedule, Demand, Volume, or Auto-fill. The OAT-24 gives users the ability to easily manage irrigation schedules for multiple nutrients, rooms, and irrigation zones.

Specification:

  • Input Voltage: 100-240V, 50/60Hz
  • Max Input Current: 1.7A
  • Max Output Voltage/Current: 24VAC/0.5A per output
  • Working Environments: Temperature 32-122°F (0-50°C), Humidity ≤90%

Additional information

Weight 1.92 lbs
Dimensions 10.83 × 6.46 × 2.56 in
Brand

Brand

TrolMaster

Warranty

These are the steps you need to take for warranty issues

  1.  All customers (end users) must submit a request and contact Trolmaster support at www.trolmaster.com/News/Warranty?class=Support to troubleshoot and validate.
  2. Please use the TrolMaster case number to initiate a warranty request through the GreenPlanet warrantyClick here
  3. All claims must have proof of purchase from an authorized GreenPlanet wholesale partner.  We will not claim RMAs for non GreenPlanet wholesale customers.
  4. All claims from wholesale partners must go through the Green Planet Wholesale warranty process with the associated Trolmaster case number.
  5. Replacement devices provided as part of an advanced exchange that are not returned to GreenPlanet within 30 days of the RMA claim will be subject to a product non-return fee of full retail value.

If you have any issues or concerns, please contact warranty@mygreenplanet.com

* ThinkGrow & Trolmaster are owned by the same umbrella company. Thus the claims and process will be the same.

Features

12 individuals schedules outputs

Content

  • 1x OAT-24
  • 1x 16ft RJ12 Cable
  • 1x Power Cable
  • 1x 13-Pin Phoenix Type Connector

Tech Sheets

Cut Sheet
