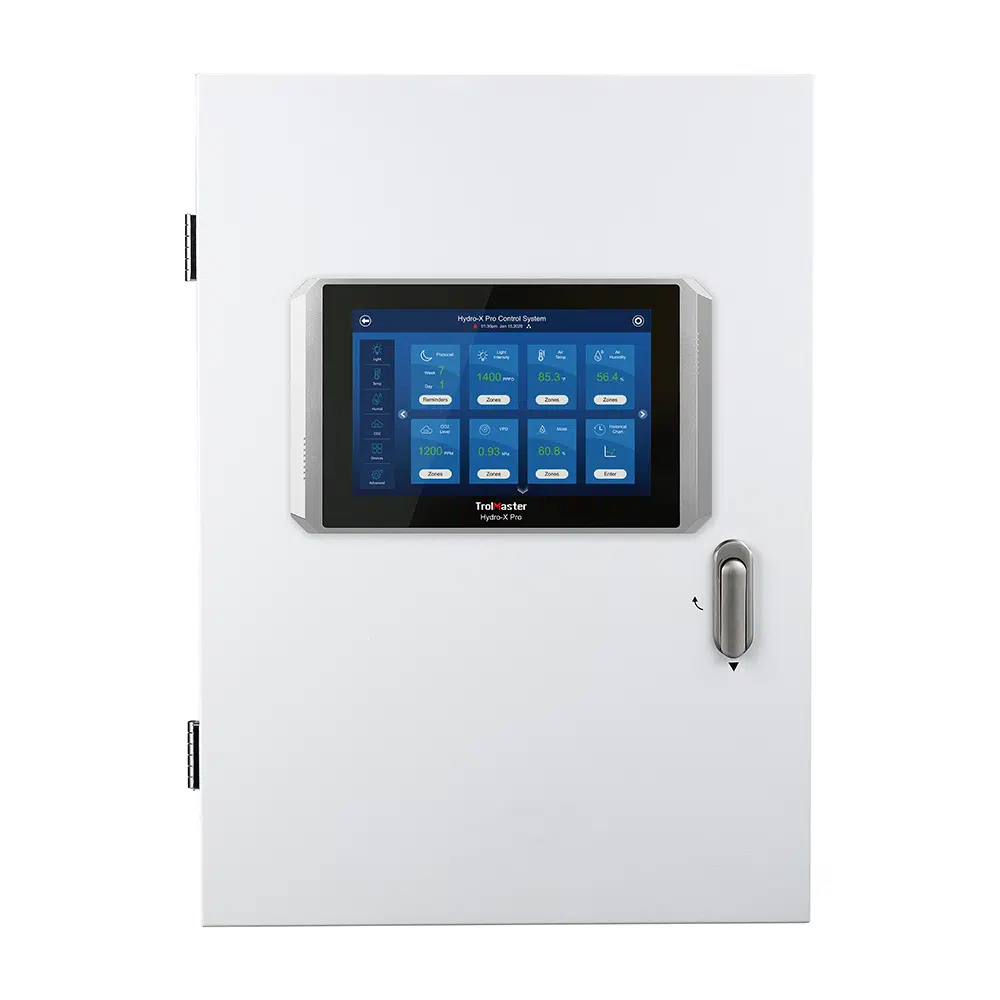

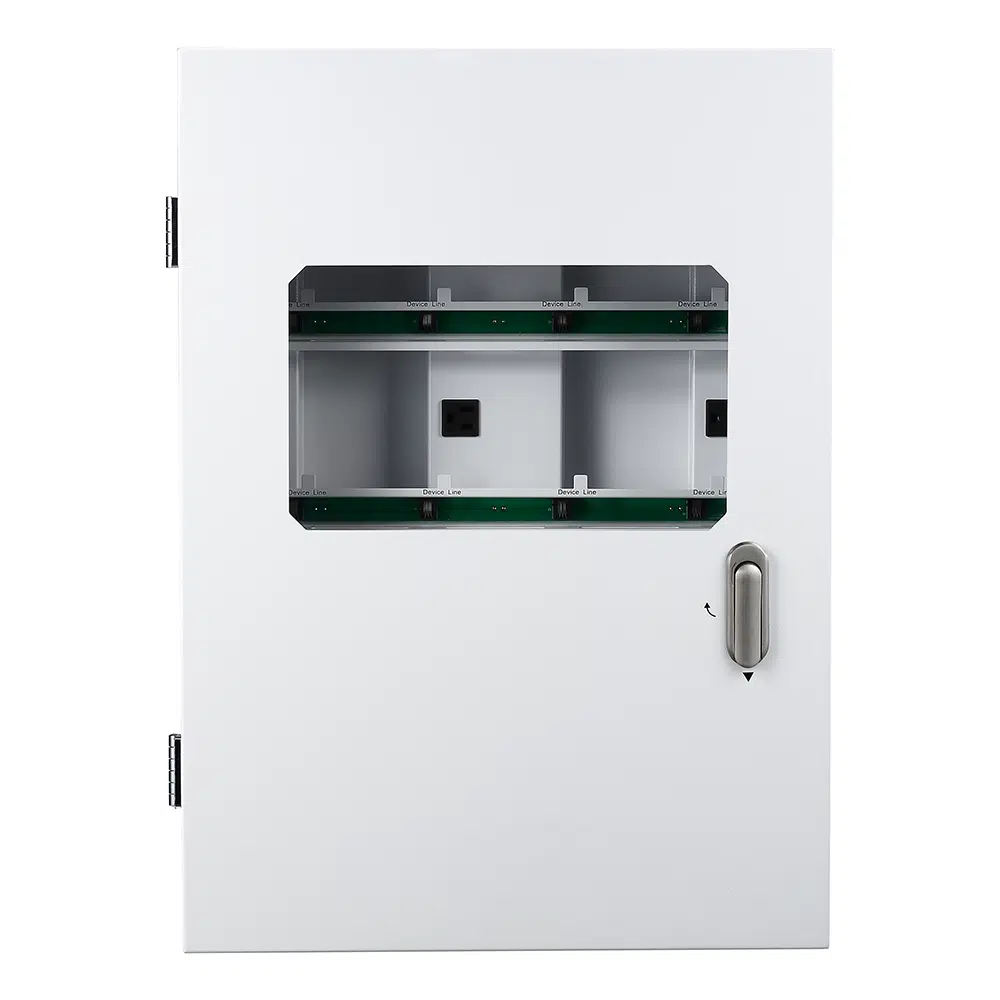

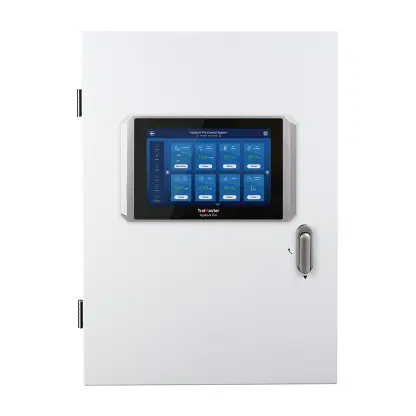

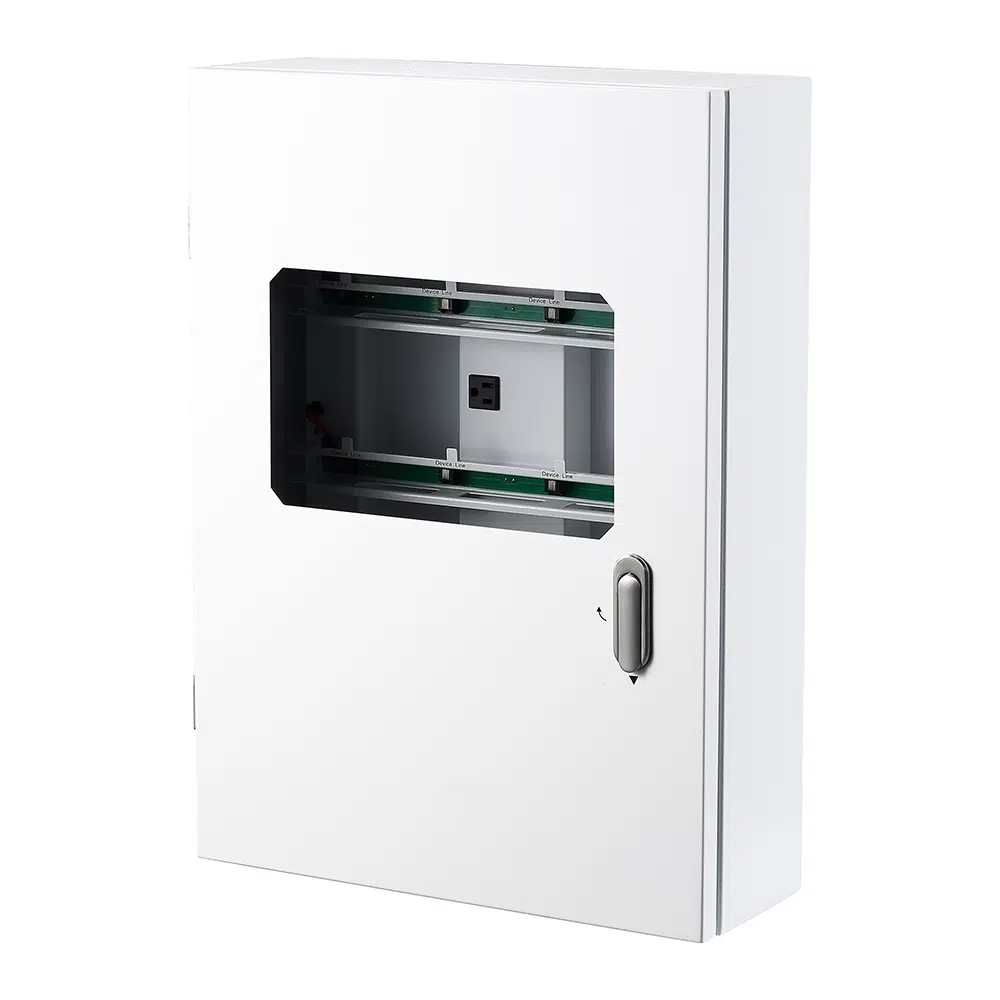

The SCC-1 25″Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.
The enclosures are designed to allow any of TrolMaster’s controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies, modules, and organize your RJ12 cables with ease.
- Guaranteed Industrial Rated & Waterproof
- ALL-IN-ONE Controller & Device Module Housing
- Design Your Own Cabinet by Using Bi-directional RJ12 Cables
- Detachable Design
- Superior Safety System
These are the steps you need to take for warranty issues
- All customers (end users) must submit a request and contact Trolmaster support at www.trolmaster.com/News/Warranty?class=Support to troubleshoot and validate.
- Please use the TrolMaster case number to initiate a warranty request through the GreenPlanet warranty. Click here
- All claims must have proof of purchase from an authorized GreenPlanet wholesale partner. We will not claim RMAs for non GreenPlanet wholesale customers.
- All claims from wholesale partners must go through the Green Planet Wholesale warranty process with the associated Trolmaster case number.
- Replacement devices provided as part of an advanced exchange that are not returned to GreenPlanet within 30 days of the RMA claim will be subject to a product non-return fee of full retail value.
If you have any issues or concerns, please contact firstname.lastname@example.org
* ThinkGrow & Trolmaster are owned by the same umbrella company. Thus the claims and process will be the same.
Dimensions: 25″ (L) x 18″ (W) x 6.26″ (H)

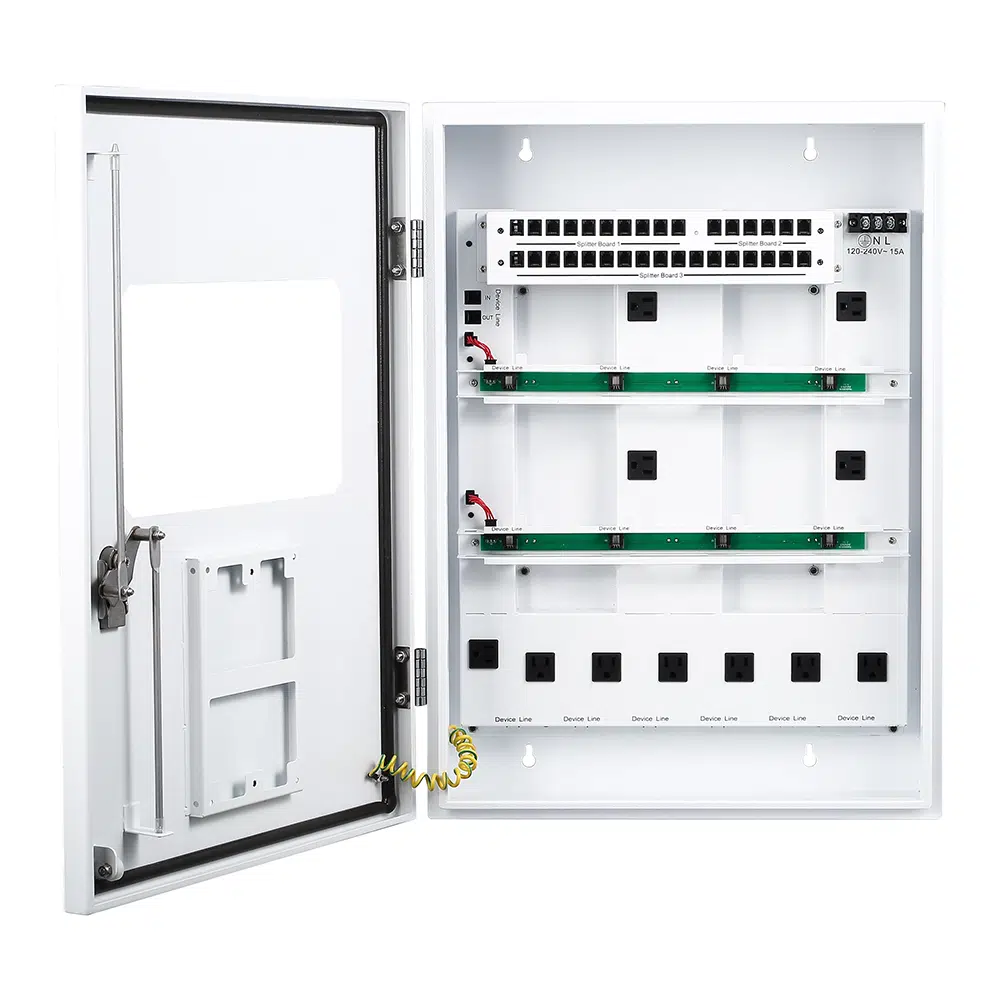

Splitter Board #1: 10 ports (top)
Splitter Board #2: 6 ports (top)
Splitter Board #3: 17 ports (top)
Splitter Board #4: 2 x 4 ports (middle splitter bars)
Splitter Board #5: 6 ports (bottom)
Power Outlet: 4 + 1 + 6
Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
Temperature Resistance: 32°-104°F
Input Voltage: 120V
Maximum Amperage: 15A

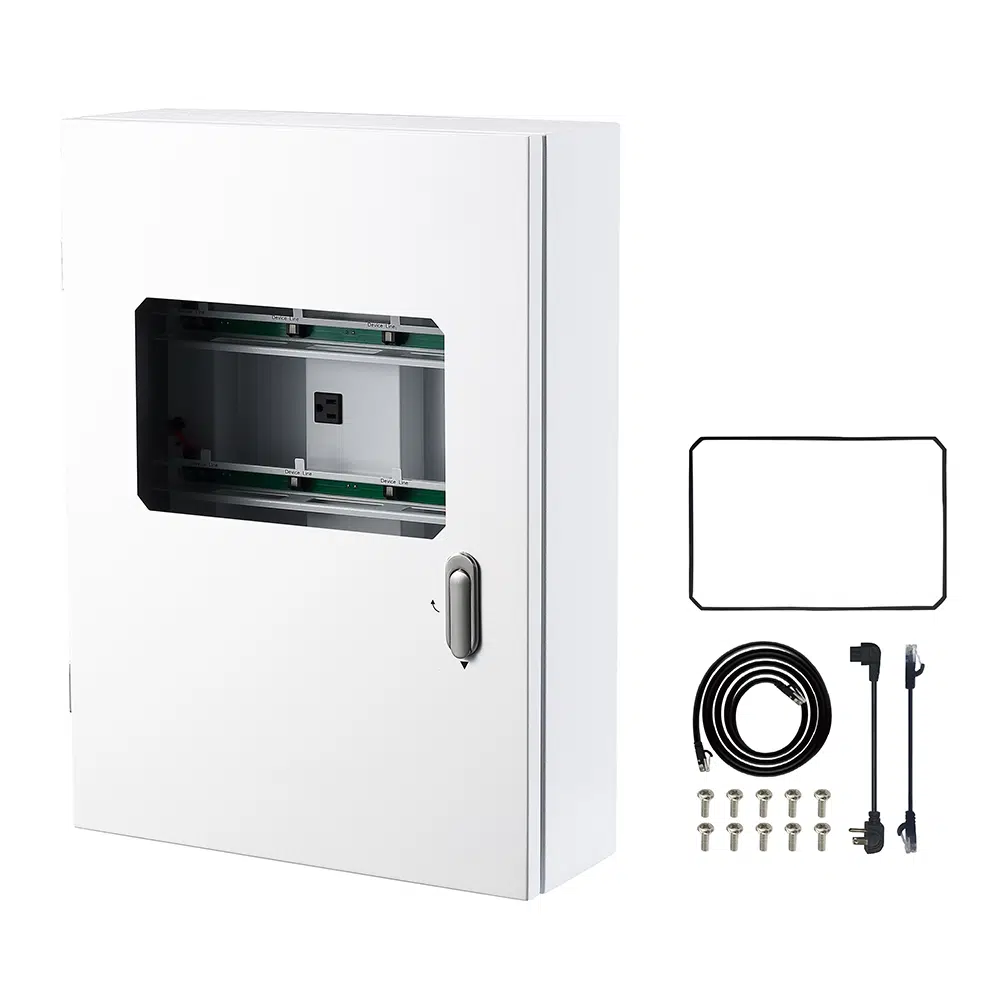

Controller Cabinet x1
Installation Manual x1
Long RJ-12 Cables x4
Short RJ-12 Cables x16
Power Cables (for OA6-24/OA6-110) x4
OA6-24/OA6-110 Screw Set x 10
